Fixed Type Model

FAB 20-IQ

Highest Airflow (m³/h) 20 000
Loudest Running Noise (db) ≤64
Motor Class / IP Grade F/IP 64
Voltage / Frequency (V/Hz) 240/50
Power / Current (kW/A) 1.1/7.5
Controller / Airflow Pattern 50 Speeds
Machine Size (mm) 1080 x 1080 x 980
Air Outlet Size (mm) 700 x 690
Net Weight (kg) 62

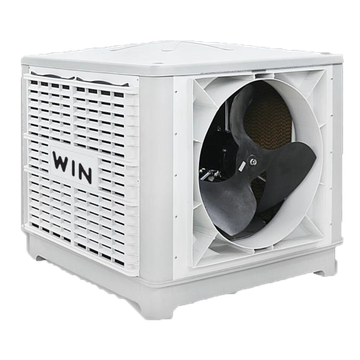

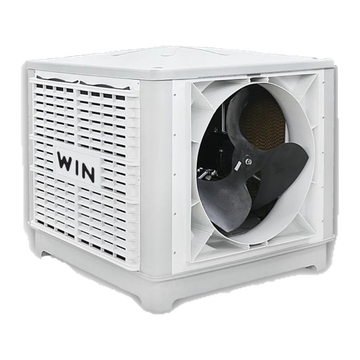

FAB 20-ER

Highest Airflow (m³/h) 20 000
Loudest Running Noise (db) ≤64
Motor Class / IP Grade F/IP 64
Voltage / Frequency (V/Hz) 415/50
Power / Current (kW/A) 1.1/2.6
Controller / Airflow Pattern 1 Speed
Machine Size (mm) 1080 x 1080 x 980
Air Outlet Size (mm) 700 x 690
Net Weight (kg) 66

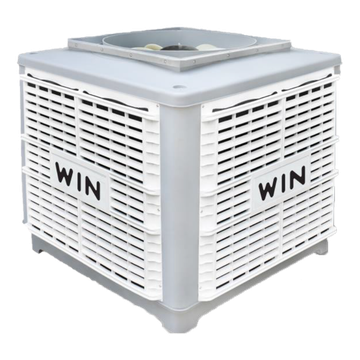

FAU 20-IQ

Highest Airflow (m³/h) 20 000
Loudest Running Noise (db) ≤64
Motor Class / IP Grade F/IP 64
Voltage / Frequency (V/Hz) 240/50
Power / Current (kW/A) 1.1/7.5
Controller / Airflow Pattern 50 Speeds
Machine Size (mm) 1080 x 1080 x 980
Air Outlet Size (mm) 670X670
Net Weight (kg) 64

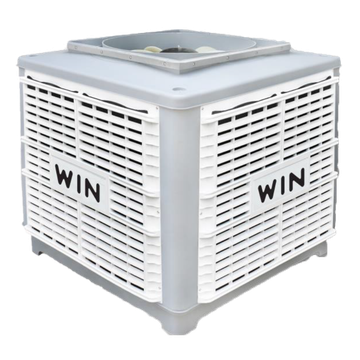

FAU 20-ER

Highest Airflow (m³/h) 20 000
Loudest Running Noise (db) ≤64
Motor Class / IP Grade F/IP 64
Voltage / Frequency (V/Hz) 415/50
Power / Current (kW/A) 1.1/2.6
Controller / Airflow Pattern 1 Speed
Machine Size (mm) 1080 x 1080 x 980
Air Outlet Size (mm) 670X670
Net Weight (kg) 68

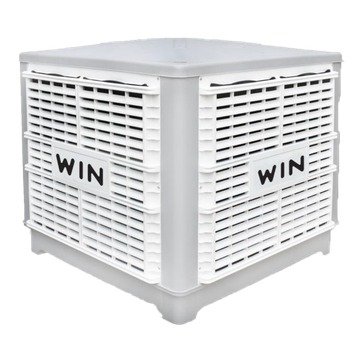

FAD 20-IQ

Highest Airflow (m³/h) 20 000
Loudest Running Noise (db) ≤64
Motor Class / IP Grade F/IP 64
Voltage / Frequency (V/Hz) 240/50
Power / Current (kW/A) 1.1/7.5
Controller / Airflow Pattern 50 Speeds
Machine Size (mm) 1080 x 1080 x 980
Air Outlet Size (mm) 670X670
Net Weight (kg) 60

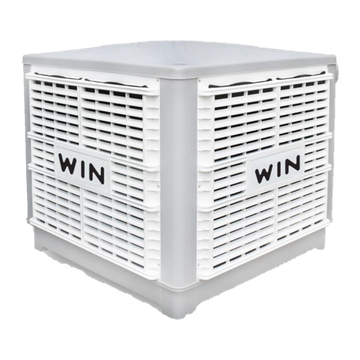

FAD 20-ER

Highest Airflow (m³/h) 20 000
Loudest Running Noise (db) ≤64
Motor Class / IP Grade F/IP 64
Voltage / Frequency (V/Hz) 415/50
Power / Current (kW/A) 1.1/2.6
Controller / Airflow Pattern 1 Speed
Machine Size (mm) 1080 x 1080 x 980
Air Outlet Size (mm) 670X670
Net Weight (kg) 64

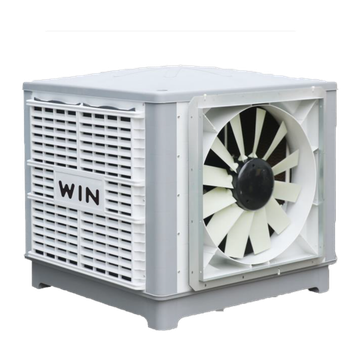

FAB 25-ER

Highest Airflow (m³/h) 25000
Loudest Running Noise (db) ≤68
Motor Class / IP Grade F/IP 64
Voltage / Frequency (V/Hz) 415/50
Power / Current (kW/A) 1.3/3
Controller / Airflow Pattern 1 Speed
Machine Size (mm) 1080 x 1080 x 980
Air Outlet Size (mm) 700 x 690
Net Weight (kg) 67

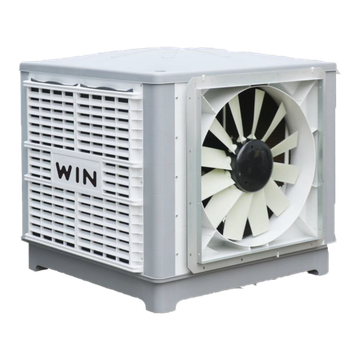

FAB 25-IQ

Highest Airflow (m³/h) 25000
Loudest Running Noise (db) ≤68
Motor Class / IP Grade F/IP 64
Voltage / Frequency (V/Hz) 240/50
Power / Current (kW/A) 1.3/8.5
Controller / Airflow Pattern 50 Speeds
Machine Size (mm) 1080 x 1080 x 980
Air Outlet Size (mm) 700 x 690
Net Weight (kg) 63

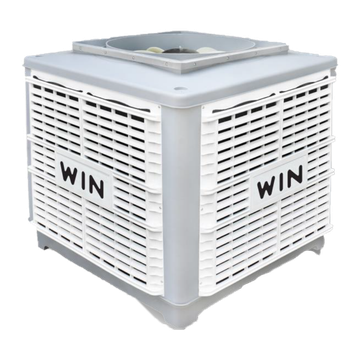

FAU 25-ER

Highest Airflow (m³/h) 25000
Loudest Running Noise (db) ≤68
Motor Class / IP Grade F/IP 64
Voltage / Frequency (V/Hz) 415/50
Power / Current (kW/A) 1.3/3
Controller / Airflow Pattern 1 Speed
Machine Size (mm) 1080 x 1080 x 980
Air Outlet Size (mm) 670 x 670
Net Weight (kg) 69

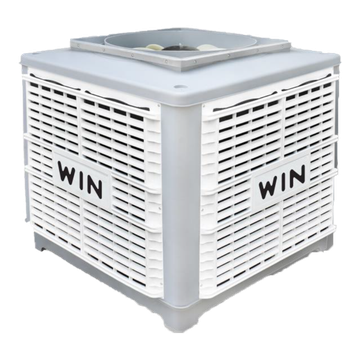

FAU 25-IQ

Highest Airflow (m³/h) 25000
Loudest Running Noise (db) ≤68
Motor Class / IP Grade F/IP 64
Voltage / Frequency (V/Hz) 240/50
Power / Current (kW/A) 1.3/8.5
Controller / Airflow Pattern 50 Speeds
Machine Size (mm) 1080 x 1080 x 980
Air Outlet Size (mm) 670 x 670
Net Weight (kg) 65

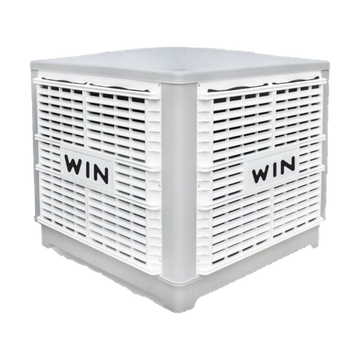

FAD 25-ER

Highest Airflow (m³/h) 25000
Loudest Running Noise (db) ≤68
Motor Class / IP Grade F/IP 64
Voltage / Frequency (V/Hz) 415/50
Power / Current (kW/A) 1.3/3
Controller / Airflow Pattern 1 Speed
Machine Size (mm) 1080 x 1080 x 980
Air Outlet Size (mm) 670 x 670
Net Weight (kg) 66

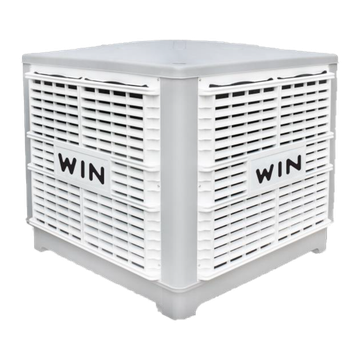

FAD 25-IQ

Highest Airflow (m³/h) 25000
Loudest Running Noise (db) ≤68
Motor Class / IP Grade F/IP 64
Voltage / Frequency (V/Hz) 240/50
Power / Current (kW/A) 1.3/8.5
Controller / Airflow Pattern 50 Speeds
Machine Size (mm) 1080 x 1080 x 980
Air Outlet Size (mm) 670 x 670
Net Weight (kg) 62

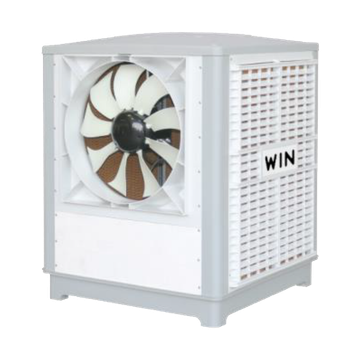

FAB 30-ER

Highest Airflow (m³/h) 30 000
Loudest Running Noise (db) ≤78
Motor Class / IP Grade F/IP 64
Voltage / Frequency (V/Hz) 415/50
Power / Current (kW/A) 1.5/3.1
Controller / Airflow Pattern 1 Speed
Machine Size (mm) 1080 x 1080 x 1380
Air Outlet Size (mm) 700 x 690
Net Weight (kg) 78

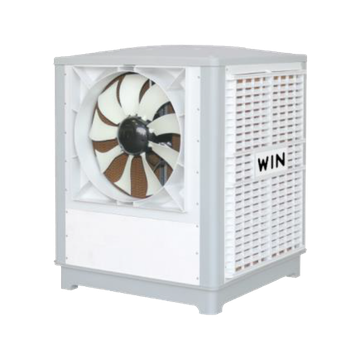

FAB 30-IQ

Highest Airflow (m³/h) 30 000
Loudest Running Noise (db) ≤78
Motor Class / IP Grade F/IP 64
Voltage / Frequency (V/Hz) 240/50
Power / Current (kW/A) 1.5/10
Controller / Airflow Pattern 50 Speeds
Machine Size (mm) 1080 x 1080 x 1380
Air Outlet Size (mm) 700 x 690
Net Weight (kg) 78

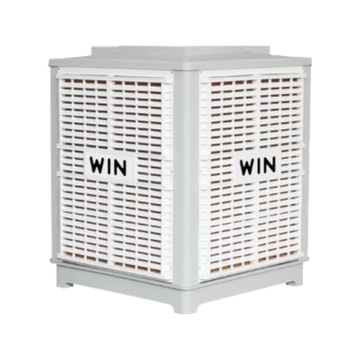

FAU 30-ER

Highest Airflow (m³/h) 30 000
Loudest Running Noise (db) ≤78
Motor Class / IP Grade F/IP 64
Voltage / Frequency (V/Hz) 415/50
Power / Current (kW/A) 1.5/3.1
Controller / Airflow Pattern 1 Speed
Machine Size (mm) 1080 x 1080 x 1380
Air Outlet Size (mm) 670 x 670
Net Weight (kg) 80

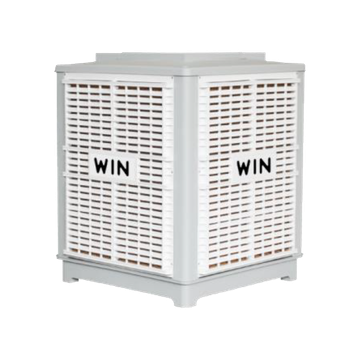

FAU 30-IQ

Highest Airflow (m³/h) 30 000
Loudest Running Noise (db) ≤78
Motor Class / IP Grade F/IP 64
Voltage / Frequency (V/Hz) 240/50
Power / Current (kW/A) 1.5/10
Controller / Airflow Pattern 50 Speeds
Machine Size (mm) 1080 x 1080 x 1380
Air Outlet Size (mm) 670 x 670
Net Weight (kg) 80

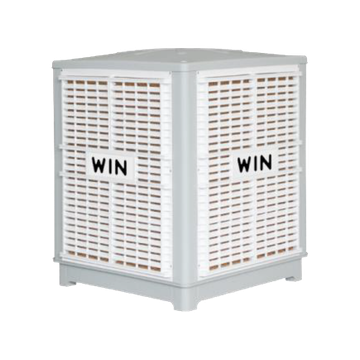

FAD 30-ER

Highest Airflow (m³/h) 30 000
Loudest Running Noise (db) ≤78
Motor Class / IP Grade F/IP 64
Voltage / Frequency (V/Hz) 415/50
Power / Current (kW/A) 1.5/3.1
Controller / Airflow Pattern 1 Speed
Machine Size (mm) 1080 x 1080 x 1380
Air Outlet Size (mm) 670 x 670
Net Weight (kg) 80

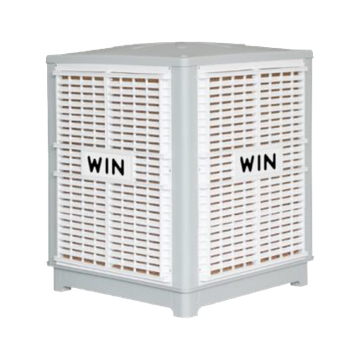

FAD 30-IQ

Highest Airflow (m³/h) 30 000
Loudest Running Noise (db) ≤78
Motor Class / IP Grade F/IP 64
Voltage / Frequency (V/Hz) 240/50
Power / Current (kW/A) 1.5/10
Controller / Airflow Pattern 50 Speeds
Machine Size (mm) 1080 x 1080 x 1380
Air Outlet Size (mm) 670 x 670
Net Weight (kg) 80
